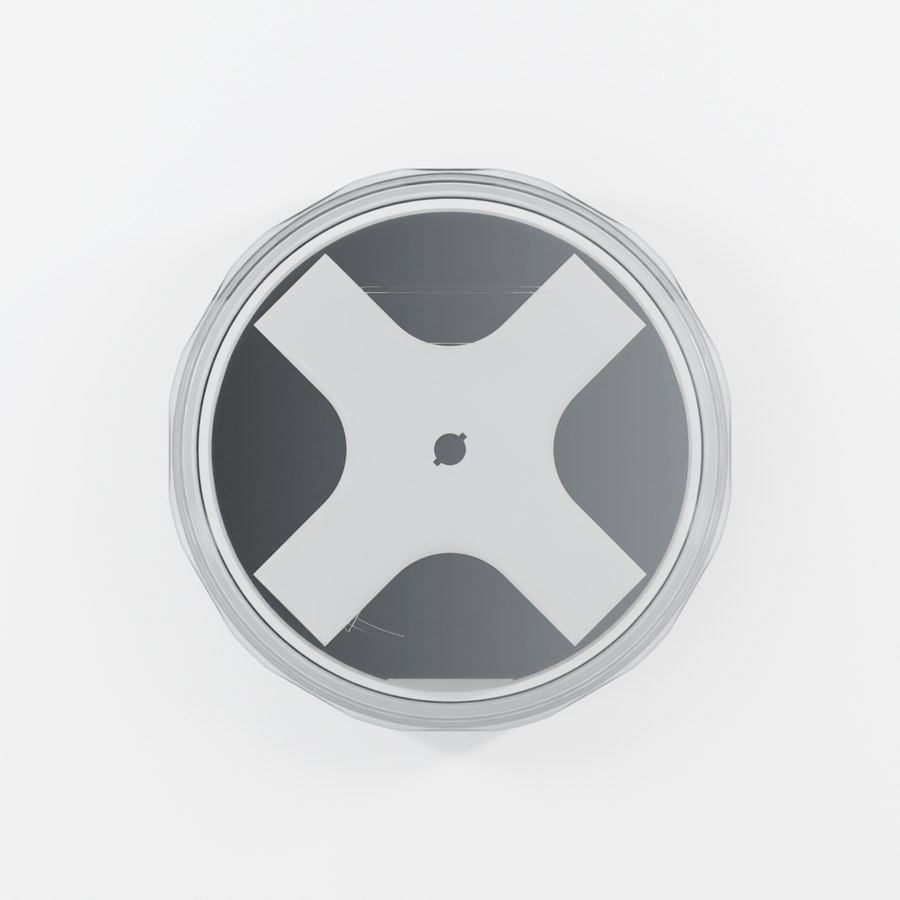

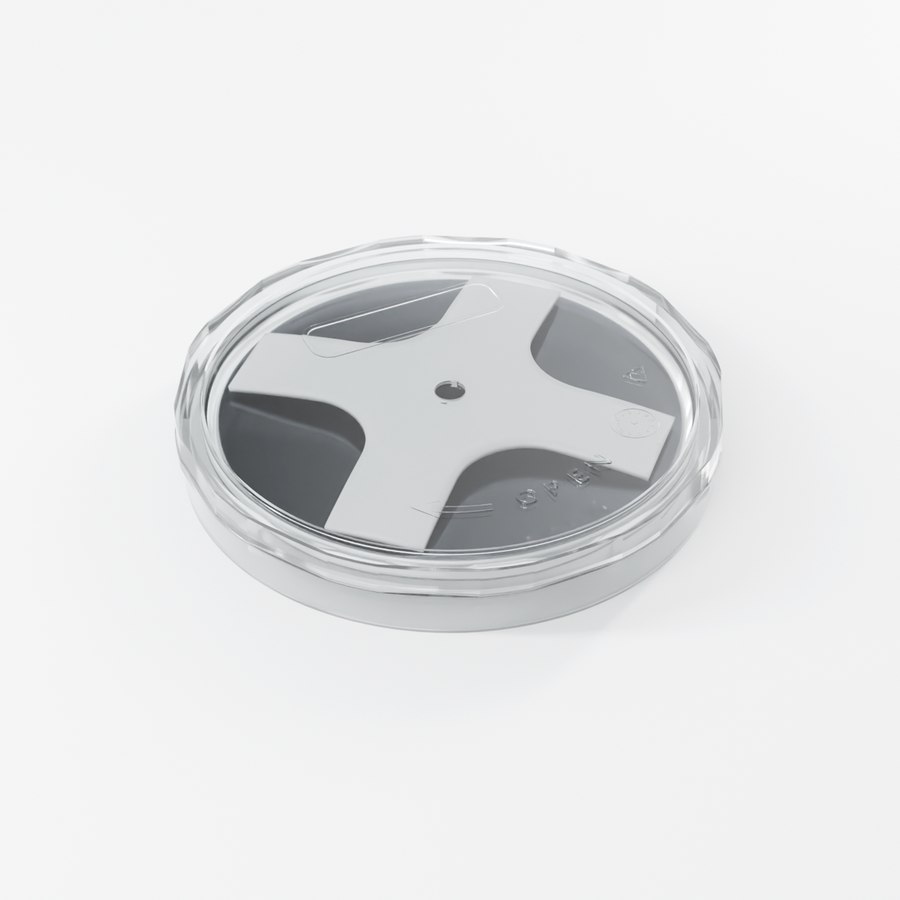

ePAK introduces a new InP wafer shipper: a coin shipper for 3 inch (76mm) indium phosphide wafers. The eCT3-76-R.5 holds one InP wafer per container in a clear polycarbonate lid and base, with a PBT cross spring that keeps the wafer in place.
Built for brittle InP wafers
InP is brittle. Its fracture toughness is well below silicon and below GaAs, it cleaves readily along crystal planes, and damage to the mirror-finish device side is often invisible until wafer-level test.
A coin shipper gives each high-value InP wafer its own container, so wafers are handled and shipped one at a time.
Three parts, one assembly
InP wafer shipper specifications
| Order code | eWB1019-ASSY-1 |
|---|---|
| Description | eCT3-76-R.5-ASSY-1 |
| Wafer | 3 inch (76mm) InP |
| Outside dimensions | Ø90.4 x 13.5mm |
| Lid and base | Clear polycarbonate (eM-12-TRA) |
| Spring | PBT cross spring (eM-176-NAT) |
4 and 6 inch versions coming soon
Versions for 4 and 6 inch (100 and 150mm) InP wafers will be available soon. For 150mm wafers, ePAK also supplies the eCT6-150-R.6 coin shipper (eWB0998) in natural, conductive and V4 grade polypropylene. See all single wafer shippers.
Frequently Asked Questions
About shipping 3 inch InP wafers in the eWB1019-ASSY-1.
It holds one 3 inch (76mm) indium phosphide wafer per container. The closed shipper measures Ø90.4 x 13.5mm.
InP is brittle: it cleaves readily along crystal planes, and damage to the device side often stays invisible until wafer-level test. A coin shipper gives each wafer its own container, so wafers are handled and shipped one at a time.

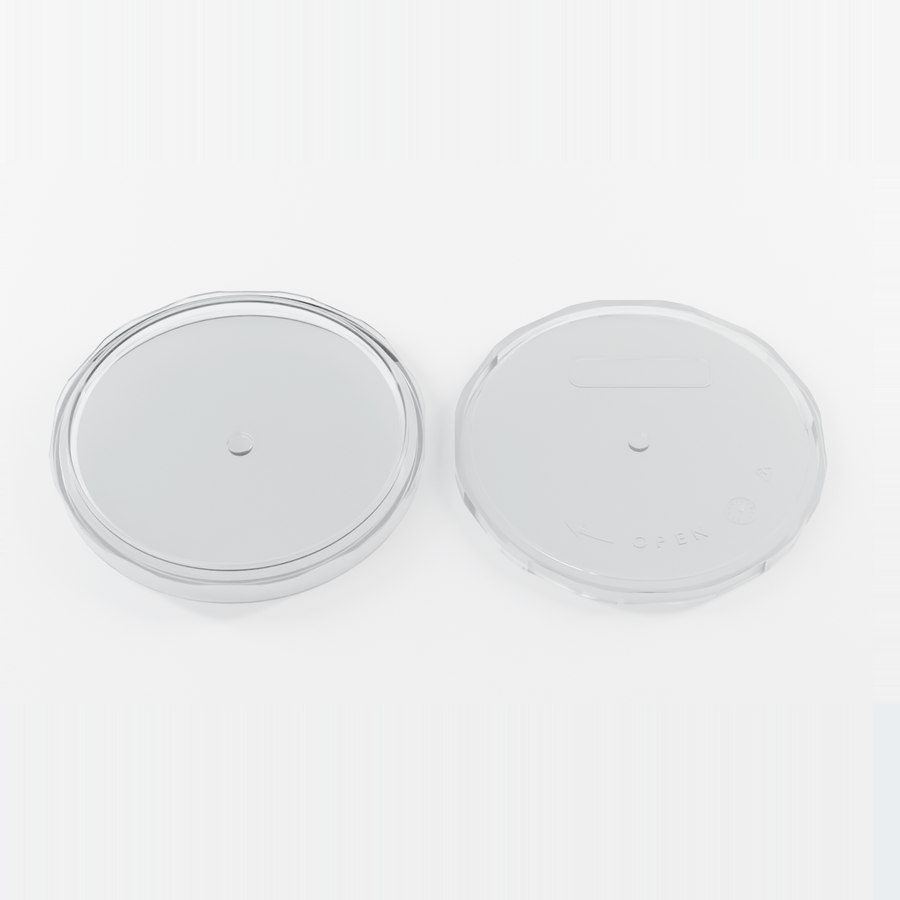

The lid and base are clear polycarbonate (eM-12-TRA). The cross spring that holds the wafer is PBT (eM-176-NAT).
Yes. The lid and base are clear polycarbonate, so the wafer stays visible while the shipper is closed.
Versions for 4 and 6 inch (100 and 150mm) InP wafers are coming soon. For 150mm wafers, ePAK already supplies the eCT6-150-R.6 coin shipper (eWB0998) in natural, conductive and V4 grade polypropylene.
Use order code eWB1019-ASSY-1. Lid, base and spring ship together as one assembly. Add it to your quote list on this page, or request technical documents.
Request a quote or technical documents
Add the eWB1019-ASSY-1 to your quote list, or request drawings and datasheets.
Images are product renderings. Wafer not included.
